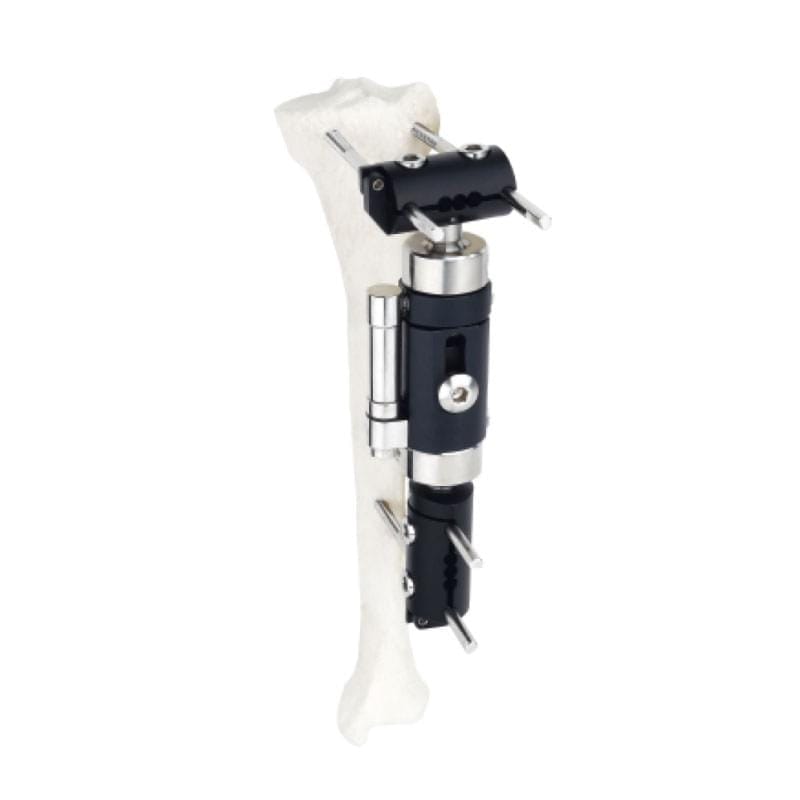

Dynamic Axial Fixator T-Type G08

When one fixator needs to serve patients from childhood to adulthood, the Dynamic Axial Fixator T-Type G08 by Amis Orthopedic delivers. Available in four sizes — XS, S, M, and X — the G08 provides reliable, micro-motion-assisted fracture fixation across the full range of clinical presentations.

Why Surgeons Choose the G08 T-Type Fixator

Not all patients are the same. The G08 was designed with that reality in mind. Its T-shaped top clamp secures four bone traction pins simultaneously, creating a stable multi-point anchoring system that resists rotation and shear forces — even in unstable, comminuted fractures.

The G08’s standout feature is its controlled axial micro-movement mechanism. Unlike rigid static fixators, the G08 applies calibrated physiological stress at the fracture site. This stimulates osteoblast activity, accelerates callus formation, and — according to clinical data — can shorten fracture healing time by 30–40% compared to conventional static fixation. The result is less time in a fixator and faster return to function for your patient.

Request a Quote — Contact the Amis Orthopedic sales team today to discuss bulk pricing and hospital supply agreements.

Four Sizes. One Consistent System.

The G08 product family spans four size tiers, eliminating the need to stock multiple incompatible fixator systems:

• XS Size — Pediatric patients and adolescents; bone traction pins Φ4.0mm
• S Size — Children and smaller adult non-weight-bearing bones; pins Φ5.0×120mm
• M Size — Adult radius, ulna, and humerus; mid-range anatomy
• X Size (Large) — Adult femur, tibia, and large-frame patients; pins Φ6.0×150mm

All sizes share the same T-type clamp architecture, so surgical teams work with a familiar system regardless of patient size.

Dual Screw Compatibility for Complex Bone Types

The G08 supports both standard and HB (Hydroxyapatite-Bonded) bone screws. HB screws provide enhanced pull-out resistance in cancellous bone — particularly useful in osteoporotic patients or metaphyseal fracture locations where cortical purchase is reduced. This dual-compatibility makes the G08 a practical choice across a broad patient demographic.

Lightweight Frame, Full Clinical Durability

The G08 frame is constructed from black anodized aircraft-grade aluminum alloy combined with medical-grade stainless steel components. This delivers a lightweight profile — approximately one-third the weight of traditional external fixators — without compromising structural integrity. Reduced weight means less cantilever stress on pin sites and a more comfortable experience for the patient during the weeks of fixation.

All components are autoclavable at 134°C, supporting full sterilization and reuse. The frame’s clean surface finish resists corrosion throughout the sterilization cycle.

Minimally Invasive Application and Postoperative Flexibility

The G08 is applied via percutaneous pin insertion, avoiding large soft tissue dissection. This reduces intraoperative blood loss, lowers postoperative infection risk, and shortens procedure time. All distraction, compression, and angular adjustments are performed externally with the included Allen wrench and T-wrench — no secondary surgery is required for postoperative fine-tuning.

This approach is especially valuable in cases involving open fractures, severe soft tissue injury, or burns where internal fixation is contraindicated.

Clinical Indications

The G08 Dynamic Axial Fixator T-Type is indicated for:

• Diaphyseal and metaphyseal long bone fractures (femur, tibia, humerus, radius, ulna)
• Unstable and comminuted fractures requiring multi-pin stabilization
• Delayed unions and nonunions treated with controlled axial micromotion
• Limb lengthening via distraction osteogenesis (selected sizes)
• Post-traumatic and congenital limb deformity correction
• Temporary fixation prior to soft tissue reconstruction
• Pediatric fracture management (XS and S sizes)

Key Specifications at a Glance

Quality and Compliance

All Amis Orthopedic external fixators are manufactured to international orthopedic device standards, with strict biocompatibility, fatigue strength, and sterilization validation testing at every production stage. Our quality management system ensures every G08 unit delivered to your facility meets the specifications your surgeons depend on.

The G08 is manufactured in compliance with ISO-aligned quality protocols, designed for use in hospitals, trauma centers, and orthopedic clinics with the reliability your team expects.

Your Next Step

The G08 Dynamic Axial Fixator T-Type is the right choice for any facility that needs a single, scalable micro-motion fixation system that works for patients of every age and body type. From the pediatric ward to the adult trauma bay, the G08 adapts so your team doesn’t have to.

Get Product Specifications — Download the full G08 technical datasheet or speak with an Amis Orthopedic product specialist to find the right configuration for your department.

Full Kit Contents — All Sizes
